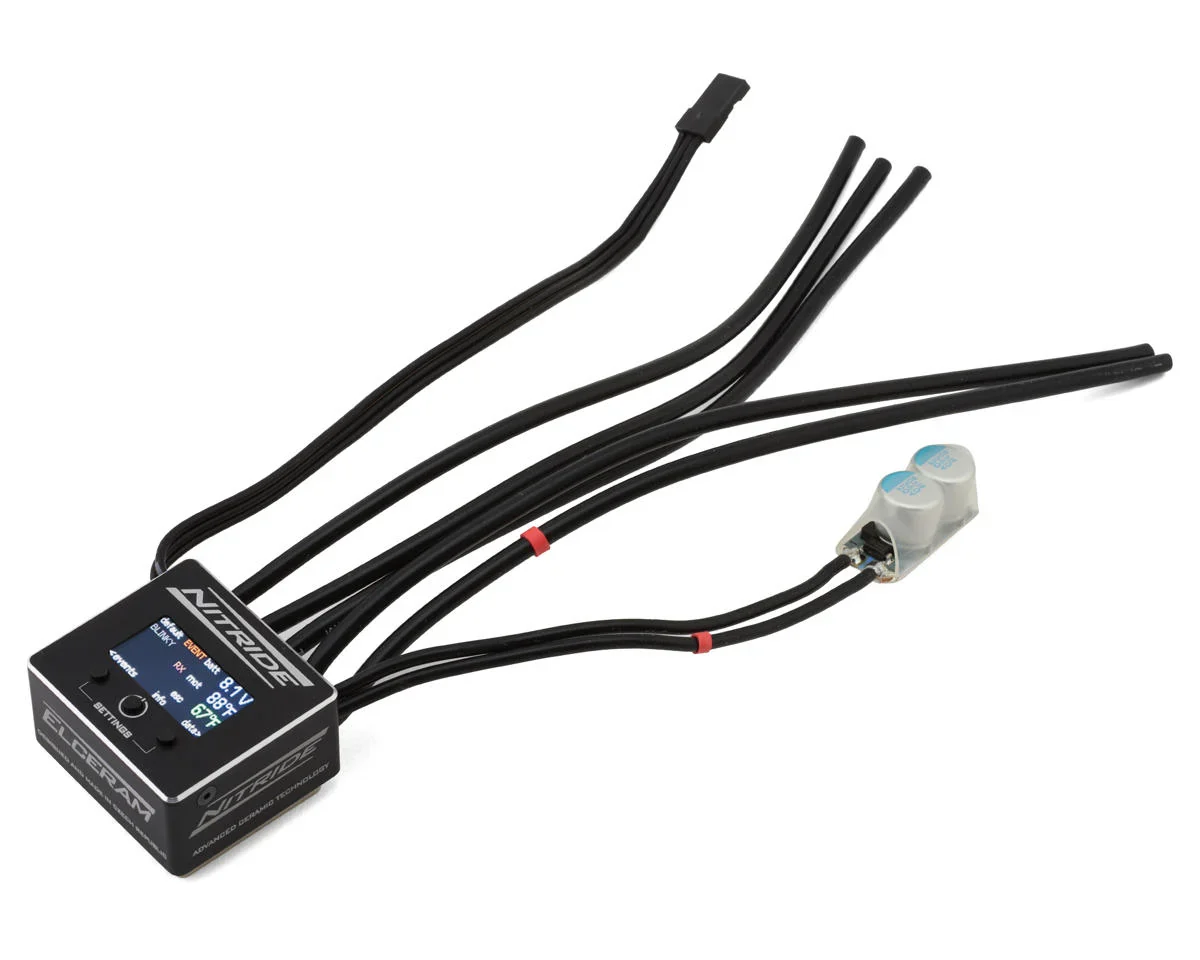

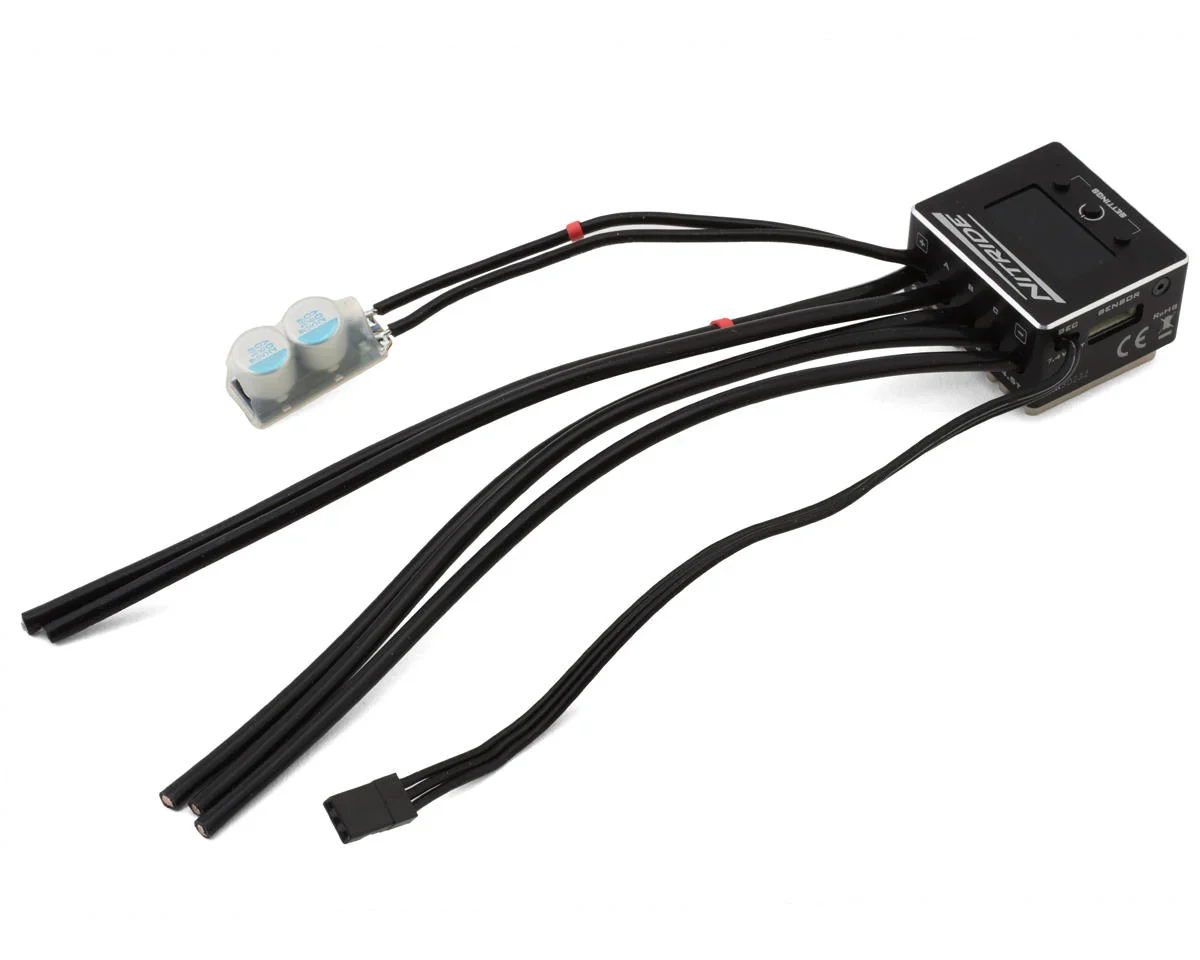

Elceram Nitride 1/10 LED Brushless ESC

Elceram Nitride the Future of ESCs:

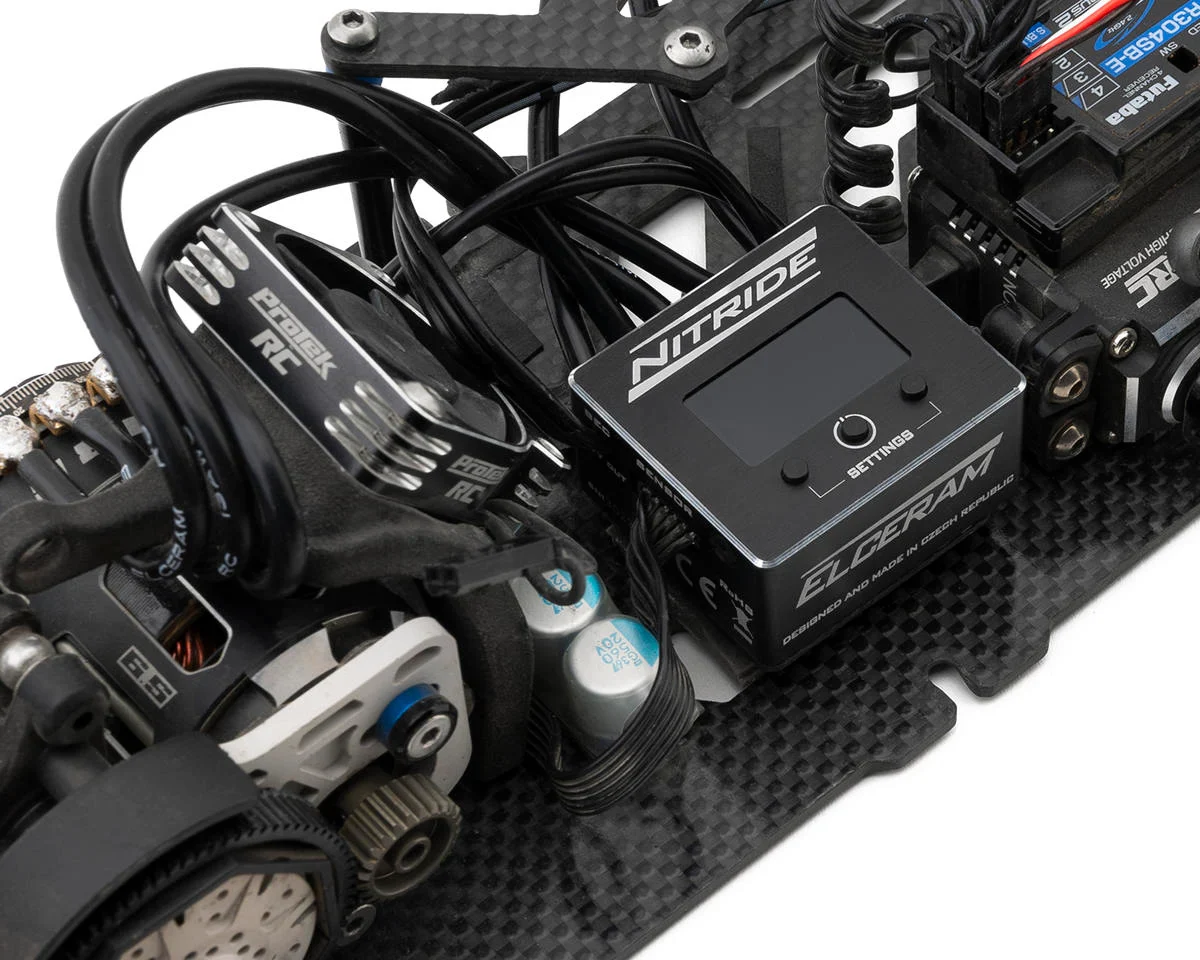

Elceram Nitride 1/10 LED Brushless ESC. The Nitride introduces a groundbreaking feature in RC motor control – an LCD color display. This innovation allows users to conveniently configure all parameters and monitor data directly on the ESC, eliminating the need for an external programming card or mobile application. The user interface is remarkably straightforward, facilitated by three buttons that enable swift adjustments. With a single glance, all essential race parameters can be effortlessly checked, offering a simple, quick, and precise user experience. Nitride is more than an ESC; it's a performance masterpiece designed to dominate the racing circuit. From rapid parameter customization to on-the-fly data assessment, Nitride revolutionizes your racing game, propelling you to the pole position of the competition

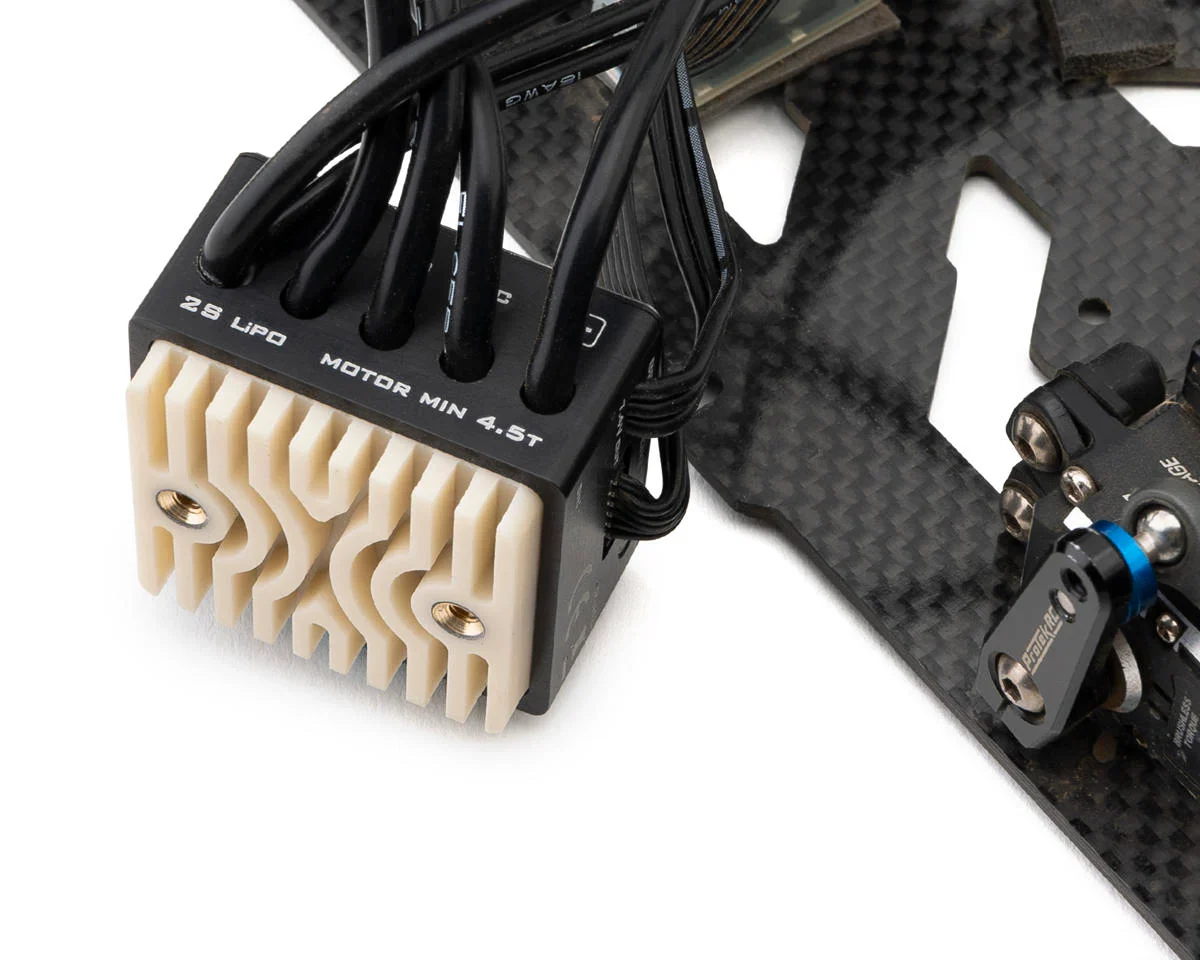

The Nitride incorporates cutting-edge cooling technology, specifically developed with an Aluminium Nitride cooler, ensuring exceptional thermal conductivity surpassing 160 W/mK and enduring resistance to elevated temperatures and loads. Notably, MOSFET transistors receive direct cooling without the need for an additional thermal resistance layer. In the manufacturing process, we implemented thick layers of special materials such as silver and copper to minimize internal resistance significantly. Drawing inspiration from our expertise in power systems, the design incorporates the latest technologies, collectively enhancing the performance and reliability of Nitride.

Features:

• A color display with Thin-Film-Transistor (TFT) LCD (Liquid-Crystal Display) technology, with a resolution of 160x80 pixels.
• Self-diagnostic before the race: motor temperature, sensor cable, battery
• Post-race data evaluation
• Race data logging
• Fully programmable all through the ESC without the need for a program card or wireless module
• Realtime Data monitoring of the battery voltage, ESC, and motor temperatures
• Advanced Aluminium Nitride Ceramic Cooling Technology
• Extremely low internal resistance based on silver conductive layer
• 70% weight bias at the bottom of the esc
• 32-Bit MCU
• 13AWG Wires

Specifications:

• Scale: 1/10
• Type: Brushless Sensored
• Input Voltage: 2S LiPo
• BEC Output: 7.4V (Fixed)
• Continuous: 180A
• Peak: 1500A
• Motor Limit: 4.5
• Programmable: Yes
• TFT LCD Display Resolution: 160x80
• Size(LxWxH): 1.50x1.35x0.96in (38.3x34.3x24.5mm)
• Weight: 3.17oz (90g)
• Roar Approved: Yes

Includes:

• (1) Elceram Nitride Brushless ESC

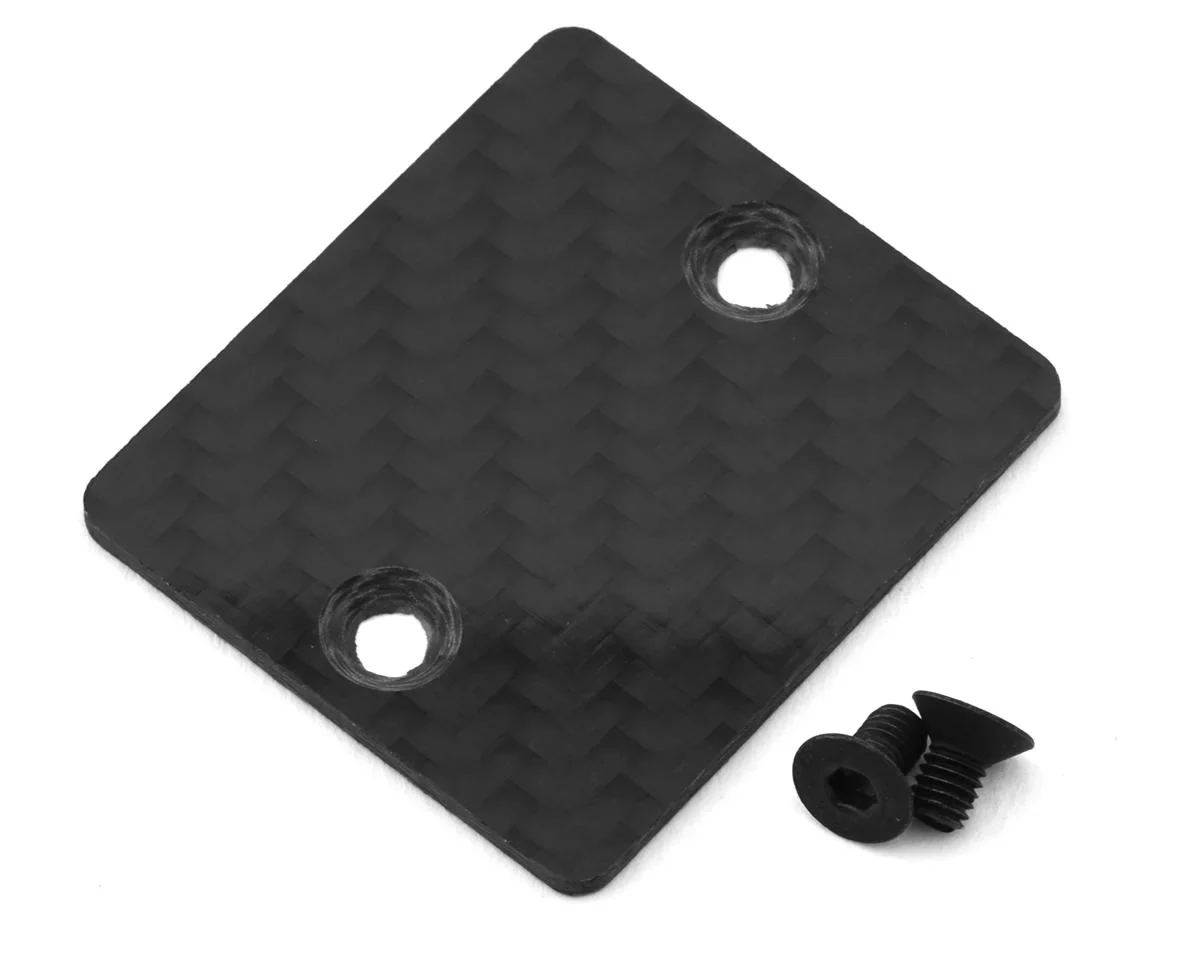

• (1) Carbon mounting plate
